Warco WM 18 Milling Machine Ballscrew CNC Conversion.
This machine will come with full electronis and fitted with our new 4.5Nm Motor and digital drivers. Mach3 setup running files supplied on USB stick so just require PC and Mach3 licence. Control Box comes with UC400ETH motion controller for ease of setup and good noise stability compared to USB connection. We can supply preconfigured laptop with window10 or you can use your own PC installation files supplied on memory stick.
FREE SHIPPING to most UK mainland address, we will inform you if any extra costs may apply.

Following Information from Warco.

R8 spindle taper, large sized table, infinitely variable speed info from Warco below.

Features include

  • Infinitely variable from 50 - 2250 rpm
  • Dovetail column slide for positive head location during elevation and decent
  • Tapered gibs to all slideways
  • Digital depth gauge to quill. Met./Imp./Zero
  • Back gear ensures maximum torque in low speed range
  • Locks to head, columns and slideways
  • Precision spindle supported on taper roller bearings
  • Head tilting plus or minus 90°
  • Rack and pinion drilling action
  • Reversible motor
  • Interlock chuck guard
  • As with all Warco milling machines, this machine has metal gears.

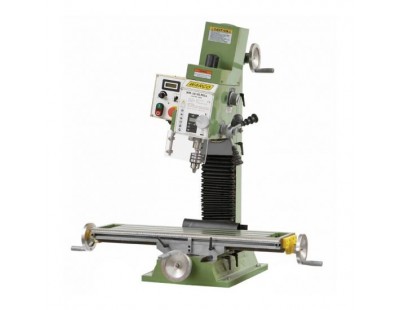

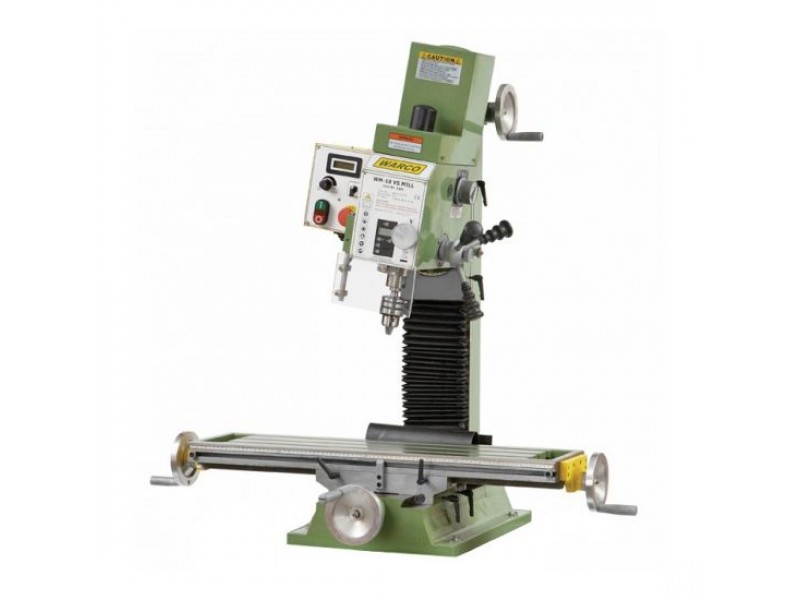

Warco WM18 Milling Machine

Each WM 18 is supplied with the following for no extra charge

  • Drawbar (7/16" UNF)
  • 13mm drill chuck
  • Arbor for drill chuck
  • Tool box and maintenance tools
  • Operation manual and spare parts list

Buying a milling machine from Warco

  • Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.
  • Warco guarantee for all standard parts and cnc4you for CNC parts.
  • Available in either metric or imperial.
  • Standard equipment that comes with each WM 18 for no additional charge includes drill chuck, arbor, tool box and drawbars.



Specification

Item No.

3260

Maximum drilling capacity

16mm

Maximum end milling capacity

20mm

Table size

840 x 210mm

No. of tee slots

3

Longitudinal traverse

565mm

Cross traverse

220mm

Vertical traverse

370mm

Distance spindle to table

470mm

Throat

180mm

Spindle taper

R8

Spindle stroke

75mm

Number of speeds

Variable

Speed range

50-2250 rpm

Head tilt left and right

90º - 0 - 90º

Motor

1100w (1.1kw)

Power supply

240v

Dimensions W x D x H
(Measurements taken to end of handle grips,
with head at maximum elevation)

1118 x 711 x 1042mm

Weight

220kg

Please note that DC motors do not run at full speed in reverse.









Write a review

Please login or register to review

WM 18 CNC

  • Product Code: WM18
  • Availability: In Stock
  • £3,299.00
