Very High performance Nema23 4Nm Stepper Motor Checkout Video below to see capability of high quality High performance Stepper and Drive combinations
4 x Very high torque Stepper Motor 1.8 Deg, Dual shaft.
DataSheet: 60BYGH401-03 4Nm Stepper Motor
DataSheet: CW5045 Microstepping Driver
DataSheet: CW8060 Microstepping Driver
DataSheet: CWD556 Digital Driver
DataSheet: CWD556 + KK01 Wiring Diagram
DataSheet: CWD556 + CP0-10V Wiring Diagram
DataSheet: CW5045 Wiring Diagram
DataSheet: CW8060 Wiring Diagram
Ultra high holding torque of 4Nm with is equivalent to 566 oz-in.
These are our flagship Steppers with amazing power in such a small outline. These motors are superb for upgrading your equipment to CNC due to there high torque and Nema 23 low profile. High Torque with low profile compared to Nema 34 allows for lower start up inertia and normally better speed and acceleration due to less mass to spin. Eight wire design allows for Bipolar Parallel and series connection, also compatible with unipolar drivers. Can easily be paired with our Advanced microstepping driver CW5045 or our new CWD556 Digital Drivers and also our higher voltage capable 6 Amp 80 Volt Advanced microstepping driver CW8060 or CW6060AC.
High quality dual shaft ready for encoders etc.
Don't compromise your design higher torque with good quality controller gives better resolution accuracy when using Microstepping.

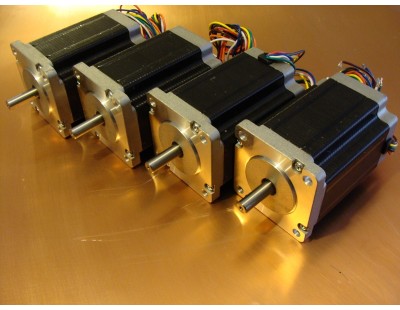

Stepper Motor 4Nm x 4 Nema23
- Product Code: 60BYGH401-03x4
- Availability: In Stock
-
£137.55
