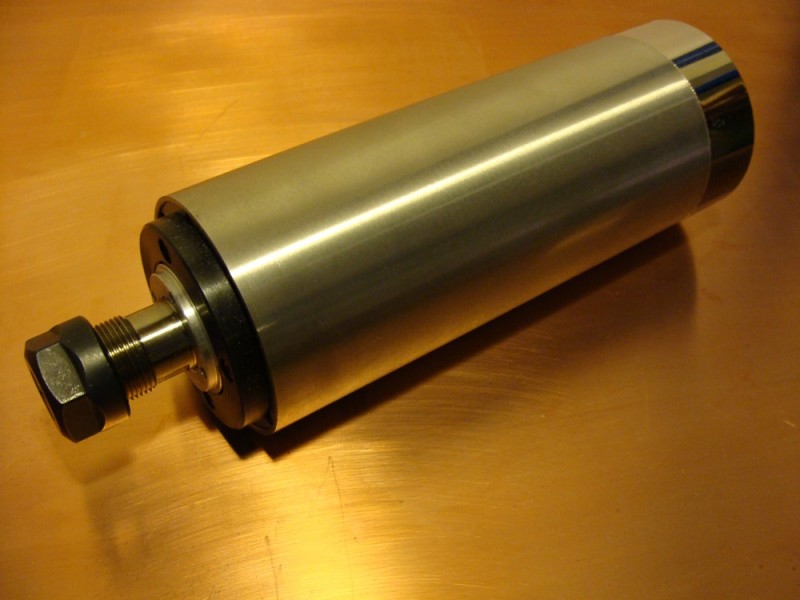

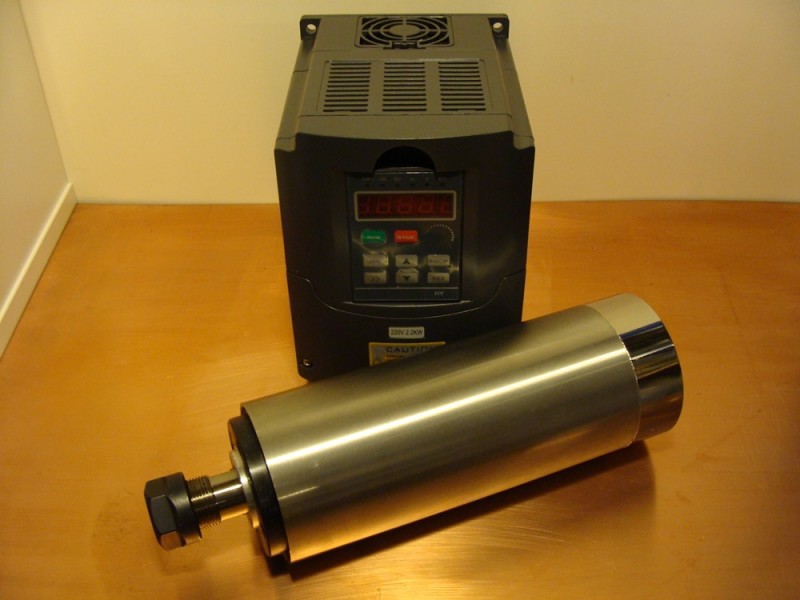

Spindle Motor 3 Phase 2.2KW Water cooled ER20 with Matching VFD

Our Spindle Motors and VFD’s are direct from manufacturer and not purchased from lowest priced suppliers of unknown sources and therefore unknown quality and reliability. These units have been fully tested before leaving our premises for operation and speed control, VFD parameters have been set before leaving so just wire and run. We also have wiring diagrams helping to automate these spindles but please read and understand conditions of use and always respect automatic systems and dangers associated with automatic machine control. At present only our CP0-10V breakout board is shown as our other breakout boards are not suitable for this application, we cannot over emphasis dangers of automating machinery so if uncertain contact a specialised engineer to assist you.

Grab yourself a high quality Spindle from a Known UK supplier.

DataSheet:  2.2kW Spindle
​DataSheet:  VFD Manual

DataSheet:  2.2kW Spindle Wiring Diagram

CAUTION THESE UNITS COME SETUP FOR USE WITH OUR SPINDLES AND VFD PLEASE BE CAREFUL ADJUSTING SETTINGS AS THIS CAN CAUSE DAMAGE TO YOUR UNIT
MODBUS COMPATIBILITY IS NOT GUARANTEED CAUTION WHEN TRYING TO IMPLEMENT 3rd PARTY PLUGINS OR DLL's.

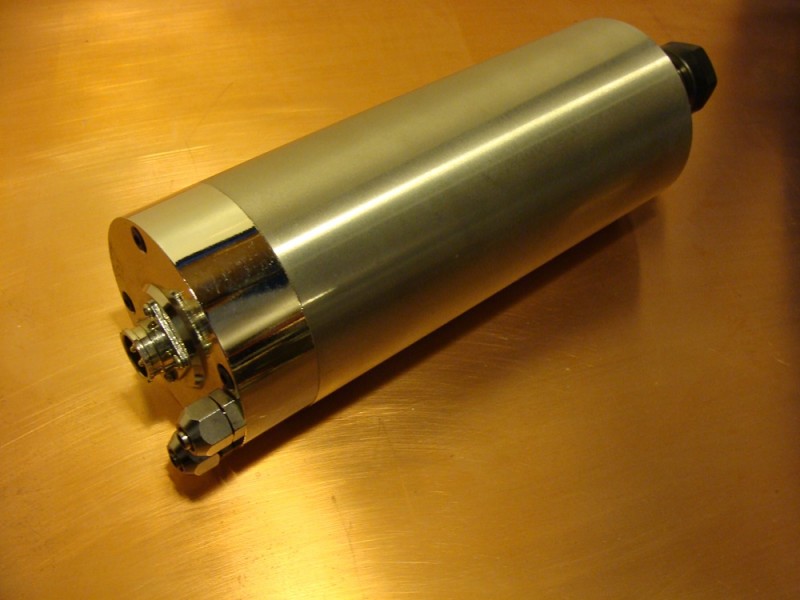

Technical Specifications Spindle
Dimensions: 80*260 mm (Diameter:80mm x Length:260mm)
Power: 2.2 KW
Voltage: 220V~250V
Frequency: 400 Hz
Speed: 4000-24000 R/min
Water Cooling
ER20 collet chuck
Custom high performance Bearings
Grease Lubrication

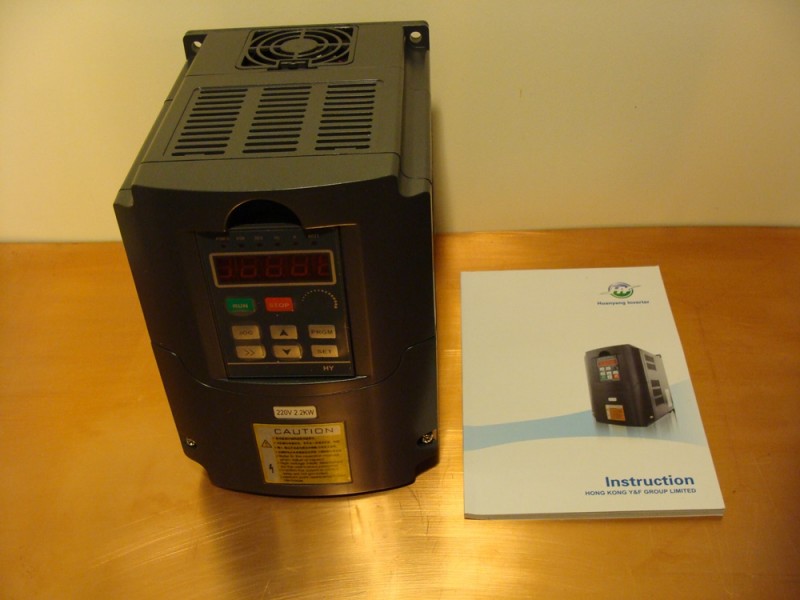

Technical Specifications for Variable Frequency Drive Inverter
Input Voltage: 220±15%
Output Voltage – 208-240VAC
Input Frequency: 48-63 Hz
Output Frequency: 0-400 Hz
Input Phase: both single and 3 phase input
Output Phase: 3 phase 0 to 400Hz



Write a review

Please login or register to review

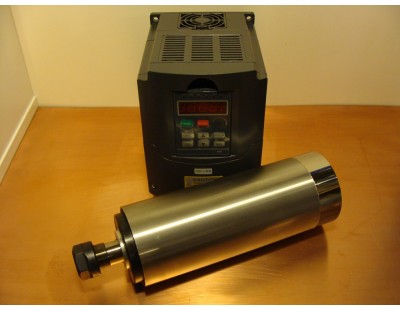

Spindle Motor 3 Phase 2.2KW Water cooled ER20 with Matching VFD

  • Product Code: 2.2KW_ER20_Kit
  • Availability: Out Of Stock
  • £349.99
  • £309.99
