Product Information
- MICROSWITCH, V3, HUMP LEVER
- Microswitch Type: Standard
- Operating Force Max: 170gf
- SVHC: No SVHC (19-Dec-2012)
- Actuator Type: Hump Lever
- Approval Bodies: UL
- Contact Configuration: SPDT
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current AC Max: 3A
- Contact Material: Silver
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 250V
- Differential Travel Max: 0.45mm
- External Depth: 10.3mm
- External Length / Height: 15.9mm
- External Width: 27.8mm
- Fixing Centres LxW: 22.2 x 10.3 mm
- Insulation Resistance: 3Mohm
- Lever Length: 26.5mm
- Material: Phenolic Resin
- No. of Electrical Operations: 800000
- No. of Mechanical Operations: 1000000
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Over Travel Min: 2.0mm
- Pre-travel: 2.5mm
- Release Force: 30gf
- Series: V3
- Switch Case: Phenolic
- Switch Operation: SPDT
- Terminal Material: Silver plated brass
- Terminal Type: 4.8mm Quick Connect

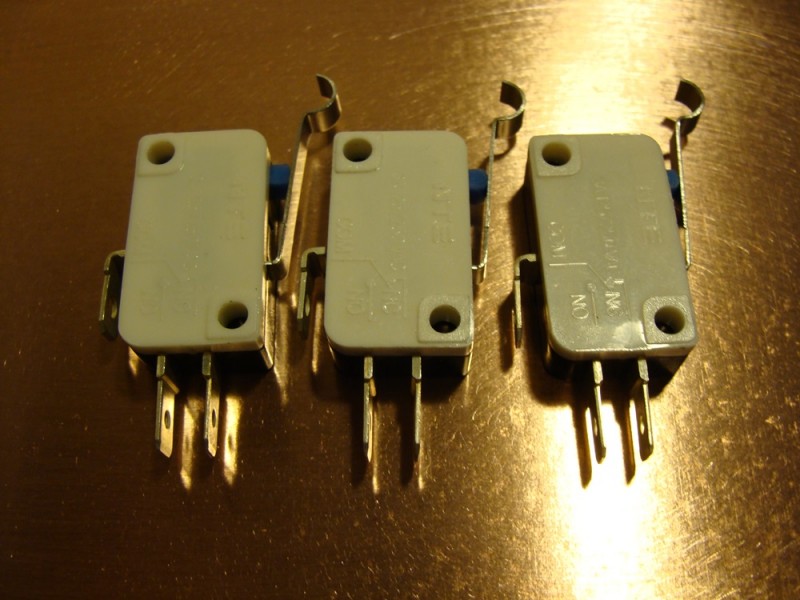

Limit Microswitch x 3
- Product Code: Standard_V3_x_3
- Availability: In Stock
-
£7.45
- Ex Tax: £6.21
